Understanding Nondeterminism

Gregory M. Kapfhammer

October 20, 2025

Learning objectives

Learning Objectives for Theoretical Machines

• CS-204-1: Use both intuitive analysis and theoretical proof techniques to correctly distinguish between problems that are tractable, intractable, and uncomputable.
• CS-204-2: Correctly use one or more variants of the Turing machine (TM) abstraction to both describe and analyze the solution to a computational problem.
• CS-204-3: Correctly use one or more variants of the finite state machine (FSM) abstraction to describe and analyze the solution to a computational problem.
• CS-204-4: Use a formal proof technique to correctly classify a problem according to whether or not it is in the P, NP, NP-Hard, and/or NP-Complete complexity class(es).
• CS-204-5: Apply insights from theoretical proofs concerning the limits of either program feasibility or complexity to the implementation of both correct and efficient real-world Python programs.

Nondeterminism does not increase power!

• Nondeterminism can improves efficiency, but not computability
• Nondeterminism can be more expressive and easier to analyze
• Any problem that can be computed by a nondeterministic Python program can also be computed by a deterministic Python program
• While there are nondeterministic versions of Turning machines and finite automata, they aid modelling and not computability

What is nondeterminism?

• Modern computers appear to do many things simultaneously
• Nondeterminism: Next step could advance any current task
• Key question: Does multitasking increase computational power? Again, no, it does not! We will “sketch” a proof of this claim.

• Practical steps to explore the concepts of nondeterminism:
  • Use a program to see what processes are running on your computer
  • Discover how languages like Python or Java support multithreading
  • Grasp the differences between threads and processes in Python or Java
  • Explore how the operating system schedules user and root processes

Operating system process listing

 772343 gkapfham  20   0  572064 273692  19100 R   9.6   0.5   2:58.16 nvim
 808852 gkapfham  20   0   44.3g 245404  66136 S   8.6   0.4   0:17.49 deno
 375317 gkapfham  20   0 1381168 132520  17564 S   5.6   0.2  30:06.67 tui-fdpw1bra.
 358101 gkapfham  20   0  562772 265936  17752 S   2.0   0.5  23:15.04 nvim
 804126 gkapfham  20   0 2771712 255572 118704 S   1.7   0.4   0:14.86 Isolated Web Co
 796574 gkapfham  20   0 1446460 126660  17820 S   1.3   0.2   2:16.39 tui-yrtvy00h.
 357079 gkapfham  20   0   11.0g 572044 127176 S   1.0   1.0  10:42.75 Isolated Web Co
 769462 gkapfham  20   0 1315544 172680 103540 S   1.0   0.3   0:18.81 .kitty-wrapped
   1267 root      20   0 1323932 203364 144172 S   0.7   0.4   9:35.36 X
   2249 gkapfham  20   0   54508  48888   4132 S   0.7   0.1   2:39.05 tmux: server
   6653 gkapfham  20   0   14.8g   2.4g   1.6g S   0.7   4.5  70:28.21 .firefox-wrappe
   6922 gkapfham  20   0 9143112   1.9g 267792 S   0.7   3.5   9:59.18 Isolated Web Co
  28977 gkapfham  20   0  386616  88000  12864 S   0.7   0.2   9:04.62 nvim
 371506 gkapfham  20   0 1448172 120924  17704 S   0.7   0.2   6:28.71 tui-hgvapgb9.
 700601 gkapfham  20   0 2789416 245556 116312 S   0.7   0.4   1:30.08 Isolated Web Co
 707583 gkapfham  20   0  232632  64584  10884 S   0.7   0.1   0:51.66 nvim
    981 root      20   0  105504  25260   9300 S   0.3   0.0   2:41.67 ..auto-cpufreq-
   1642 gkapfham  20   0 1076296 127456  81752 S   0.3   0.2   5:02.86 picom
   1693 gkapfham  20   0  110772  17544   8108 S   0.3   0.0   0:13.65 pipewire-pulse
   7159 gkapfham  20   0 3922996   1.1g 170292 S   0.3   2.0   9:53.91 Isolated Web Co
  12592 gkapfham  20   0  227952  59884  10844 S   0.3   0.1   9:18.19 nvim
 358100 gkapfham  20   0   15908   9848   8328 S   0.3   0.0   0:11.58 nvim
 464888 gkapfham  20   0   44.3g 185868  65992 S   0.3   0.3   2:26.13 deno
 729844 gkapfham  20   0 1392.1g 243904 139904 S   0.3   0.4   0:14.31 .Discord-wrappe
 729969 gkapfham  20   0 1405.6g 531080 171428 S   0.3   0.9   2:34.68 .Discord-wrappe
 771604 gkapfham  20   0 2580952  35352  18872 S   0.3   0.1   0:02.76 lazygit
 772342 gkapfham  20   0   15908   9656   8224 S   0.3   0.0   0:01.55 nvim
 773201 nscd      20   0  688988   7300   5520 S   0.3   0.0   0:00.99 nsncd

• The operating system’s scheduler allocates CPU time to each process
• Scheduling aids resource sharing and overall system responsiveness

Python with threads

• Python’s threading module creates nondeterministic programs
• Example: ContainsNANA searches for genetic patterns (e.g., CACA, GAGA, TATA, AAAA) where N means “any nucleotide”
• Launch all four searches simultaneously in separate threads
• Return yes as soon as any Python thread finds a match

• Key insights from the suggested approach:
  • Threads may complete in any order, leading to nondeterministic behavior
  • This means that output may vary between runs for the same input
  • However, the same input will always yield the same overall output
  • Nondeterministic approach potentially faster than sequential search

Deterministic ContainsNANA

def containsNANA(inString):
    strings = ['CACA', 'GAGA', 'TATA', 'AAAA']
    for string in strings:
        if string in inString:
            return 'yes'
    return 'no'

assert containsNANA('CCCTATACCCGAGACCC') == 'yes'
assert containsNANA('CCCGGGCCC') == 'no'
print(containsNANA('CCCTATACCCGAGACCC'))
print(containsNANA('CCCGGGCCC'))

yes
no

• Iteratively look for each string in strings
• Return yes if found; otherwise return no
• Deterministic: same output for same input every time

Nondeterministic ContainsNANA

from threading import Thread

def ndContainsNANA(inString):
    strings = ['CACA', 'GAGA', 'TATA', 'AAAA']
    threads = []
    ndSoln = utils.NonDetSolution()
    for s in strings:
        t = Thread(target=findString, args=(s, inString, ndSoln))
        threads.append(t)
    solution = utils.waitForOnePosOrAllNeg(threads, ndSoln)
    return solution

• Create a thread for each string in strings
• The waitForOnePosOrAllNeg utility returns yes if any thread finds a match; otherwise returns no, giving the N concept
• Achieves nondeterminism through multithreading in Python

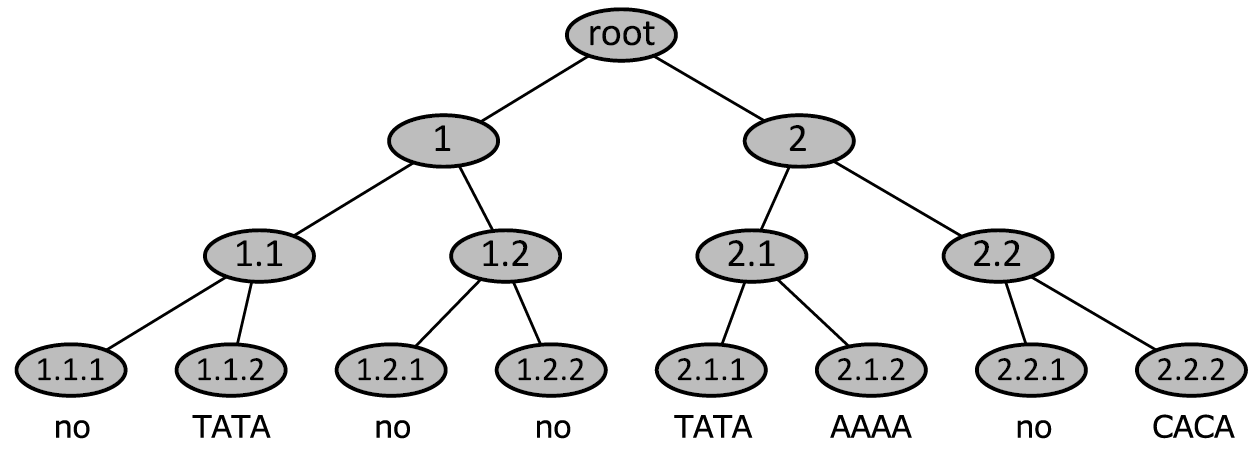

Visualizing nondeterminism

• Nodes: Represent threads; Root: Initial thread
• Leaves: Threads that return yes, no, or never terminate
• Any positive leaf: output of overall program is yes
• All leaves negative: output of overall program is is no

Claim 8.1: nondeterminism does not add power in terms of computability

Claim 8.1: Any problem computable by a nondeterministic Python program can also be computed by a deterministic Python program.

• Deterministically simulate nondeterminism by switching between tasks
• Add each new thread to task list
• If any positive leaf exists: simulation eventually reaches it
• Pre-2000 single-core computers proved this works in practice

Nondeterminism may greatly improve efficiency despite not changing the problem’s overall computability. Wow!

Nondeterministic Turing machines

• Standard Turing machine that can clone itself
• Each clone has same tape and state
• Each clone follows different transition
• Formalism enables rigorous mathematical proofs

• Nondeterministic Turing machines formalize multithreaded computation in programming languages like Python
• These Turing machines allow for “choice” at each state in the model
• Makes it possible to prove results about nondeterministic computation, helps understanding P versus NP and NP-completeness

Example: GthenOneT problem

• Input: Genetic string bracketed by x’s
• Accept if some “G” has exactly one “T” between G and either end
• When G is found: create three “clones”
  • Check left for one T
  • Check right for one T
  • Continue searching for next G

• “xATGTTx”, “xATTGTGCCTACx”, and “xTGGGTTx” are all accepted; “xATTGx”, “xCTTGAGTGTATx”, and “xCTCTx” are all rejected. Can you explain why? How would we visually express this Turing machine?

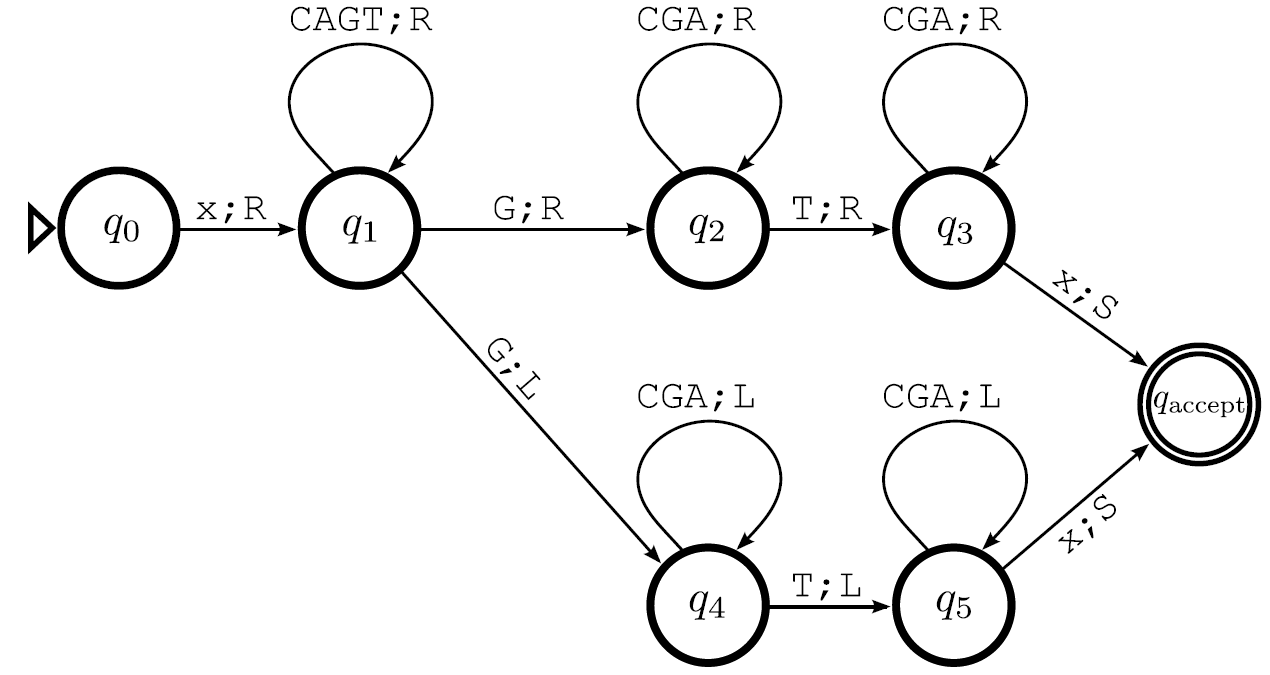

Visualize GthenOneT Turning machine

• State \(q_1\) has ambiguous transitions: multiple valid next states when scanning G. How does this work? Let’s explore!

Understanding GthenOneT

• At first glance, this looks deterministic, right?
• Key difference: states can have ambiguous transitions
• When in \(q_1\) and scanning G, three possible transitions:
  • Stay in state \(q_1\)
  • Go to state \(q_2\)
  • Go to state \(q_4\)
• Critically, this does not change overall computability
• Visualize the computation tree, show simulation is possible

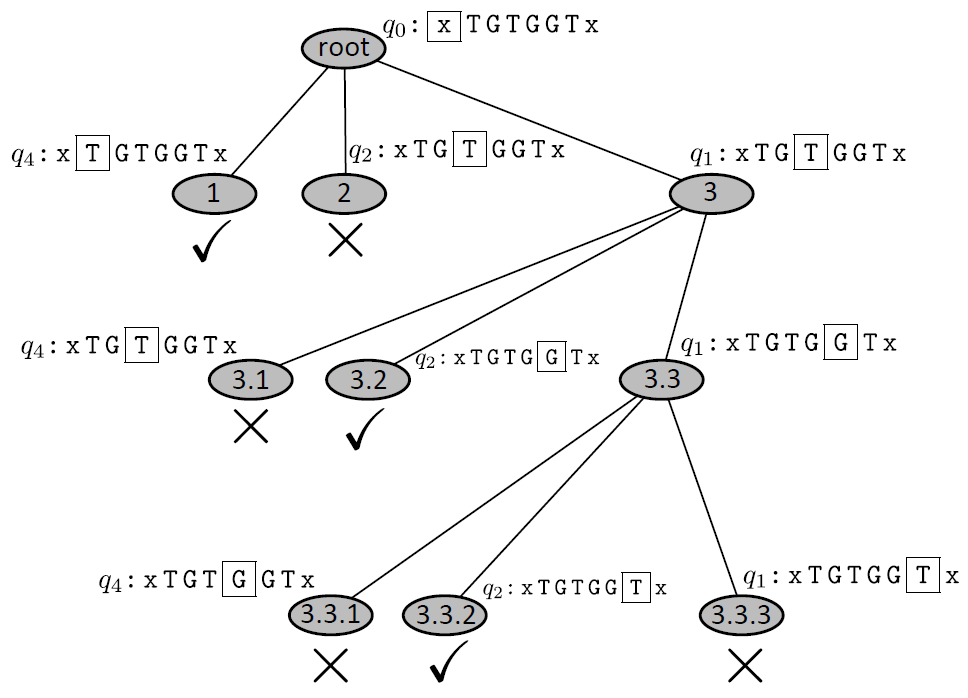

Computation tree for GthenOneT

• Input “xTGTGGTx”: three leaves accept, so result is accept

Okay, nondeterministic Turning machines have transition functions that map to sets of configurations!

• Each state-symbol pair maps to a set of possible actions
• When multiple actions exist, machine “clones” itself to explore all
• Each clone continues independently, forming a computation tree
• Accept if any clone reaches accept state; reject only if all clones reject
• Concepts like to multithreading in many programming languages!

Claim 8.3: equivalence of models

Claim 8.3: Given a nondeterministic Turing machine \(M\) that solves problem \(P\), there exists a deterministic Turing machine \(M'\) that also solves \(P\).

• Implications of this claim:
  • Nondeterministic Turing machines are more “expressive” than deterministic Turing machines
  • Importantly, they do not increase the set of computable problems
  • Any problem solvable by a nondeterministic Turing machine can also be solved by a deterministic Turing machine
  • Nondeterminism aids modelling and analysis, not computability

Three models of nondeterminism

• Simultaneous threads: Execute all threads simultaneously (book’s model)
• Random choice: Choose one transition at random
• External choice: External operator chooses transition

All three produce identical computation trees and results

Unrecognizable problems via nondeterminism

Claim 8.4: The complement of a recognizable, undecidable decision problem is unrecognizable.

• Proof idea: Create nondeterministic program executing both \(P_1\) (for \(D\)) and \(P_2\) (for \(\overline{D}\)) in parallel
• If both recognizable: combined program decides \(D\), contradicting undecidability
• NotYesOnString is unrecognizable

Why study nondeterminism?

• Easier to analyze and prove results (e.g., Claim 8.4)
• Models real systems (web search engines use hundreds of computers)
• Foundation for NP-completeness theory (Chapter 14)
• Example: integer factorization easy nondeterministically, hard deterministically

Nondeterminism: powerful conceptual tool for complexity theory

Key takeaways

• Nondeterminism does not increase computational power
• Nondeterminism can greatly improve efficiency
• Computation trees visualize nondeterministic execution
• Nondeterministic TMs formalize the concept mathematically
• Foundation for complexity theory and NP-completeness

Nondeterminism aids efficiency and proofs, not computability
